| Technical Parameter | Specification & Manufacturing Details |

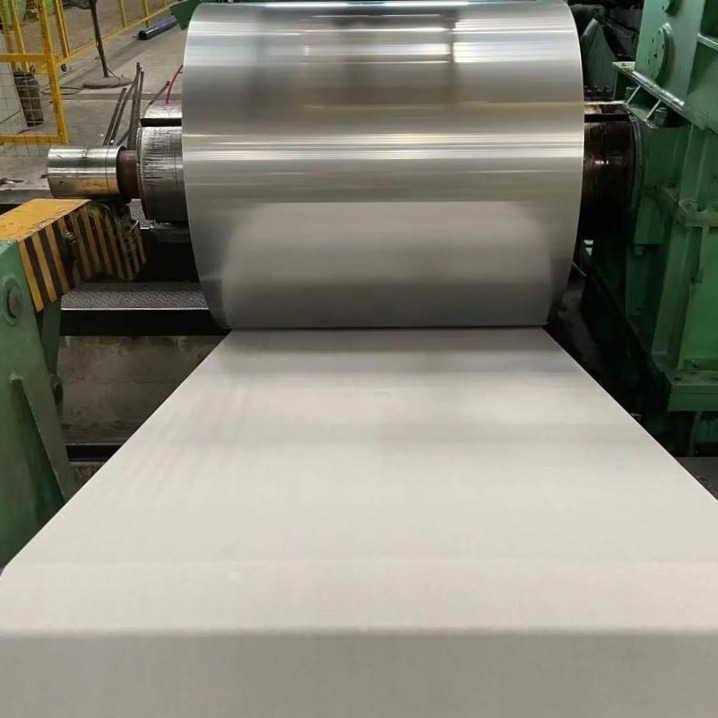

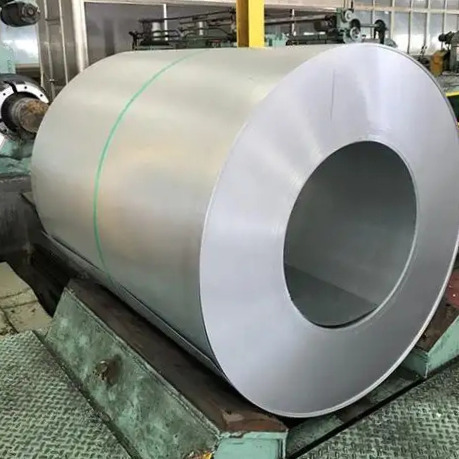

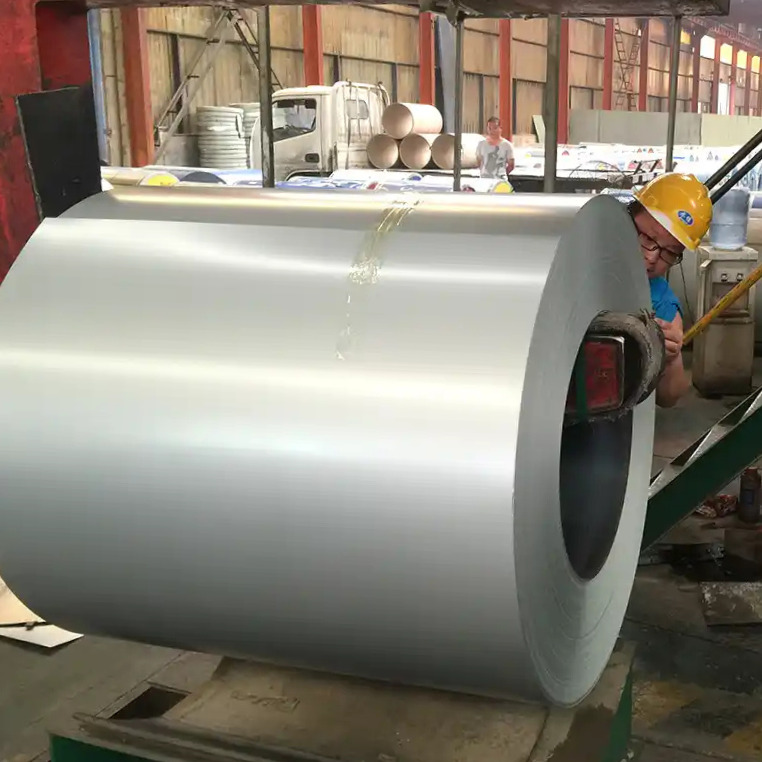

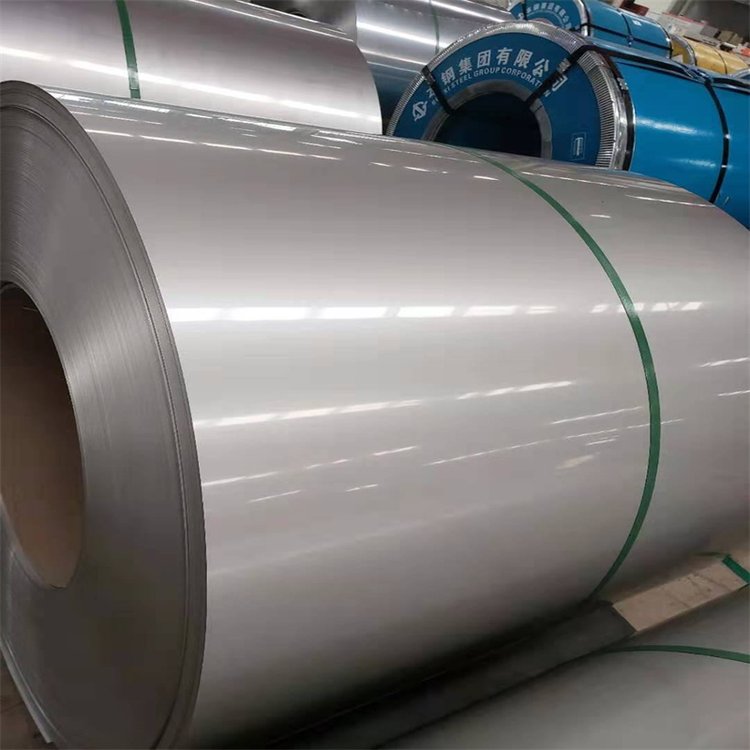

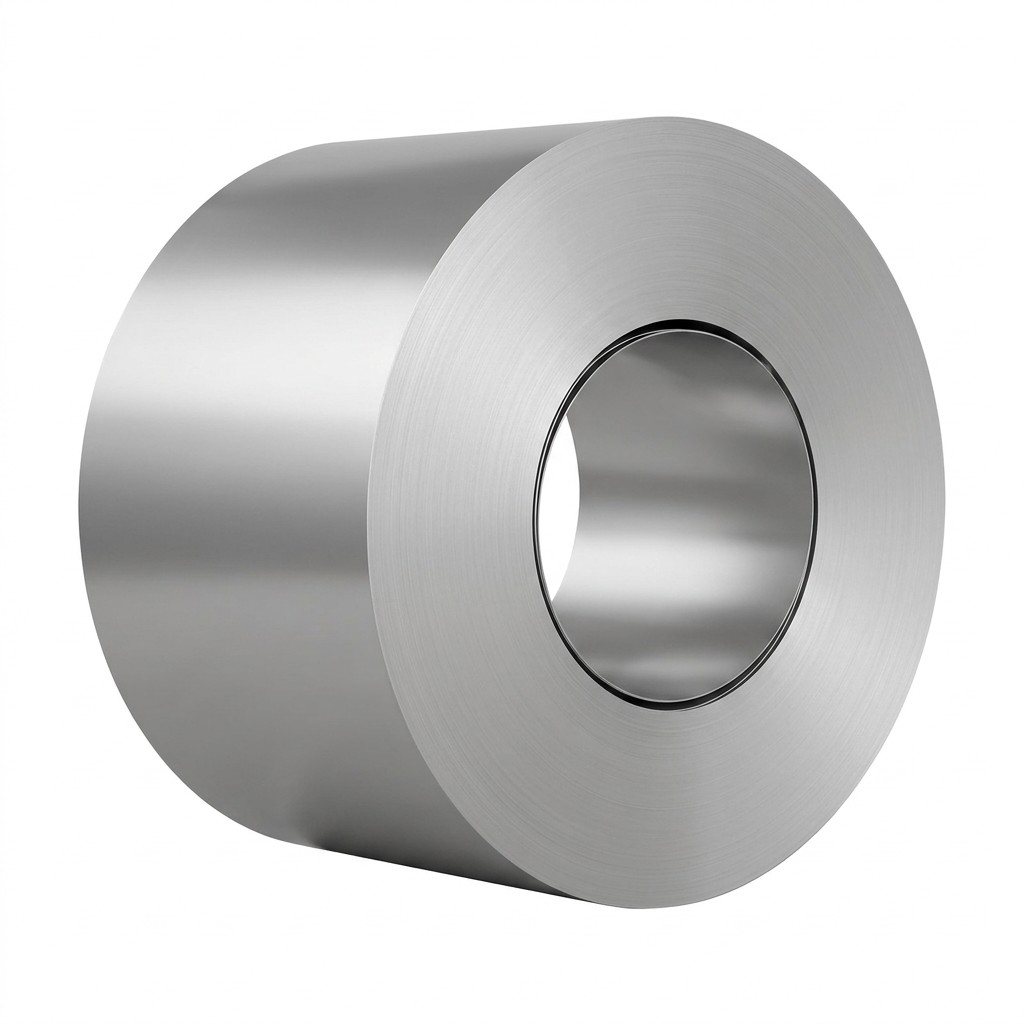

| Product Name | SUS 304 Stainless Steel Coil (Austenitic Premium Grade) |
| Surface Finish Type | 2B Finish (Cold-Rolled, Heat Treated, Pickled, and Skin-Passed) |
| Executive Standards | Fully compliant with JIS G4305, ASTM A240/A240M, and EN 10088-2 |
| Equivalent International Grades | Equivalent to ASTM 304 / UNS S30400 / EN 1.4301 / GB/T 06Cr19Ni10 |
| Thickness Range | 0.3mm - 6.0mm (High-Precision Cold-Reduced Gauge Control) |
| Width Range | 1000mm, 1219mm, 1250mm, 1500mm (Precision Edge Slitting Available) |
| Coil ID & Delivery Weight | Inner Diameter: 508mm / 610mm | Unit Coil Weight: 3 - 15 Metric Tons |
| Grade | C (%) | Si (%) | Mn (%) | P (%) | Cr (%) | Ni (%) | Yield Strengthσ0.2 (MPa) | Tensile Strengthσb (MPa) | ElongationA50 (≥%) |
| SUS 304 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | 18.0 - 20.0 | 8.0 - 10.5 | ≥ 205 | ≥ 520 | ≥ 40 |
| ASTM 304 | ≤ 0.08 | ≤ 0.75 | ≤ 2.00 | ≤ 0.045 | 17.5 - 19.5 | 8.0 - 10.5 | ≥ 205 | ≥ 515 | ≥ 40 |
| EN 1.4301 | ≤ 0.07 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | 17.5 - 19.5 | 8.0 - 10.5 | ≥ 210 | 520 - 720 | ≥ 45 |
